*This Transition bike ships for free within the continental U.S.*

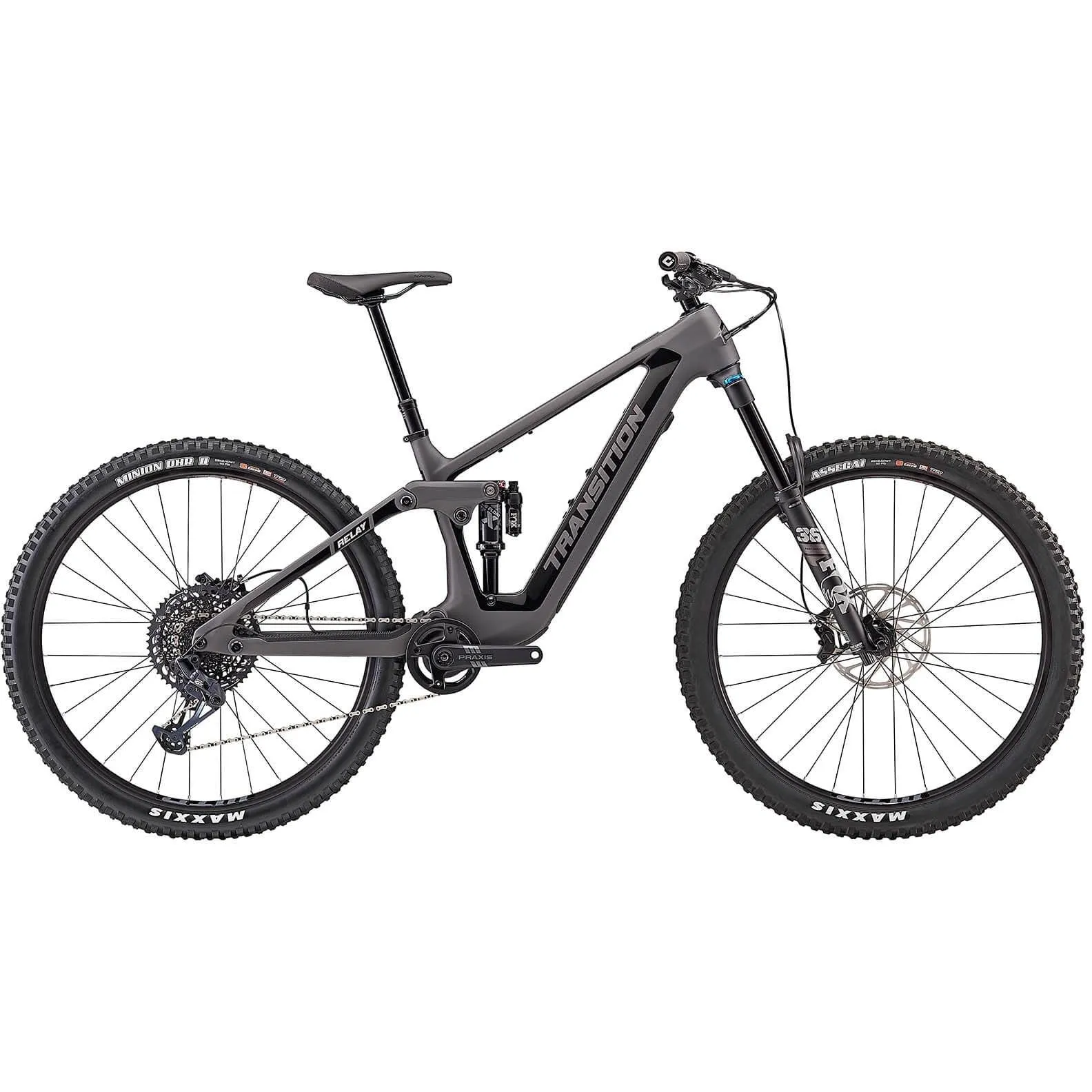

Transition designed the Relay to be a bike that could provide both an electric and non-electric experience in one chassis. The Relay is light, efficient, and quiet. This provides a more intuitive and natural feel on trail than many would expect from an eMTB. The Relay is here and ready to meet all of your mountain biking needs. Going for a rip with friends on eMTB's? Power it up and head out. Going for a rip with some friends on mountain bikes? Simply remove the battery and hit the trail with no tools required. The Relay does it all.

FEATURES:

• The Relay and Relay PNW share the same frame. The lower shock flip chip adjusts the geometry to compensate for a 27.5" or 29" rear wheel. Both Relay and Relay PNW have the ability to be run at 160 or 170mm travel front and rear, dual 29 or mixed wheel. Riders can choose the Relay with dual 29 and 160mm travel for a more lightweight, trail bike feel, or chase their burly trail dreams with the Relay PNW with 170mm travel and mixed wheels. The Relay and Relay PNW are two of the lighter, heavy-hitting eMTBs on the market.

• 160mm front & rear travel
• Full of modularity, the Relay can be ridden with the battery installed and powered, or removed, which transforms it into a regular mountain bike. Its versatility allows you to take it on a road trip where your plans include riding in areas that are legal for eMTB's, and also areas that do not allow eMTB's. The tool-free battery door allows you to remove and reinstall the battery in a matter of seconds.
• Starting at 42.5lb/19.27 kg with the battery and 37.5lb/17.01kg without the battery, every Relay is purpose-built with components to be ridden hard.
• The lightweight 60Nm Fazua Ride60 drive unit weighs 4.3lb/1.96kg. The minimal drag and power-to-weight ratio provide the magic when not riding with power. As you begin to ride beyond the speed cutoff you're not penalized when continuing to push beyond the assistance like that of traditional eMTBs. The 430Wh battery, 60Nm torque, 250Wh continuous power, 450Wh peak power, and overall bike weight work harmoniously together. This all equates to an experience that exceeds what you might expect from its numbers.
• The 430Wh battery weighs 4.85lb/2.2kg. It is easily removable via the tool-free battery door underneath the downtube. The battery is charged off the bike, which is a bonus for customers with challenging bike storage and charging situations.

SPECS:

• Frame: Relay Carbon 160mm
• Wheel Size: 29"(X-Small 27.5")
• Drive Unit: Fazua Ride 60
• Battery: Fazua Energy 430 Take Out
• Rear Shock: Fox Float X Performance Elie (205x60mm)
• Fork: Fox Float 36 Grip 2 Performance Elite (160mm)
• Headset: FSA No.55R
• Stem: RaceFace Aefect R (40mm)
• Handlebar: ANVL Mandrel Alloy 35 MD/LG/XL (800x30mm)

• Grips: ODI Elite Flow Lock-On
• Saddle: SDG Bel Air 3
• Seatpost: OneUp Dropper Post 120mm XS 150mm SM 180mm MD 210mm LG/XL/XXL
• Brakes: SRAM Code R
• Rotors: SRAM Centerline (200mm)
• Shifter: SRAM POD Bridge MMX
• Derailleur: SRAM GX AXS Eagle Transmission
• Cassette: SRAM XS 1275 T-Type (10-52t)
• Chain: SRAM GX Eagle Transmission
• Crank: Praxis Alloy ETOR (165mm)
• Chainring: Transition Bash Spider SRAM 32t Alloy E Ring (T-Type)
• Rims: RaceFace Aeffect R
• Spokes: RaceFace 2.0/1.7/2.0
• Hubs: RaceFace Trace 28H
• Tire (Front): Maxxis Assegai 3C EXO 2.5
• Tire (Rear): Maxxis Minion DHRII 3C EXO 2.4
• Included: Fazua Charger, SRAM AXS Battery Charger, Tubeless Valves & Sealant
