Product Details
＋

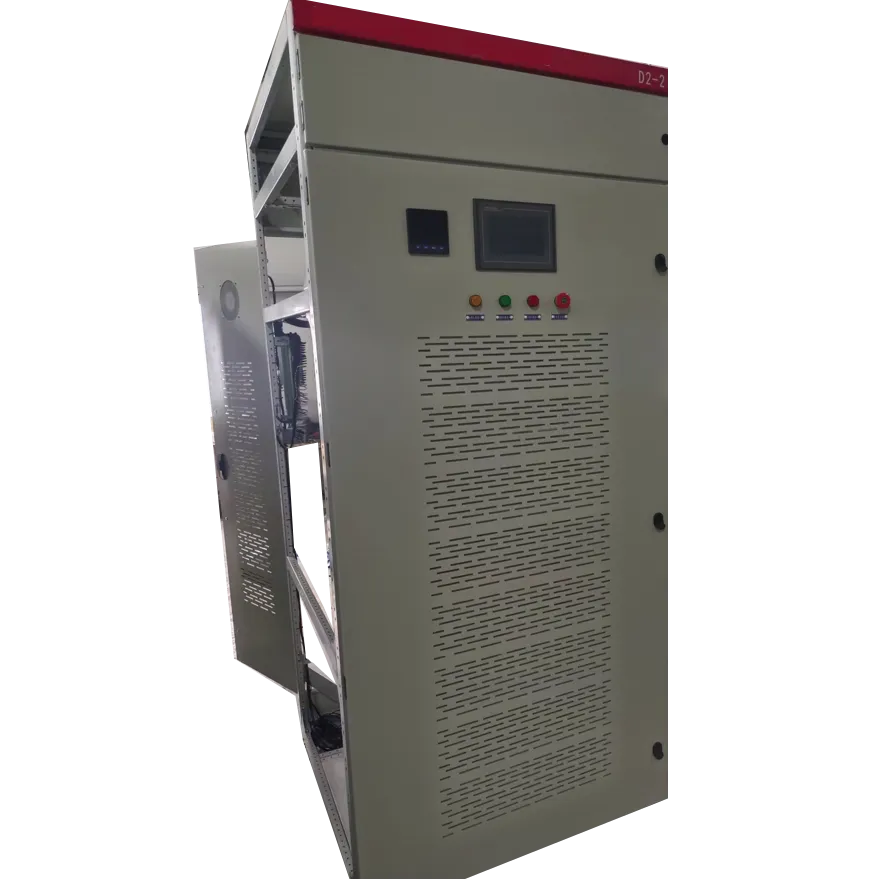

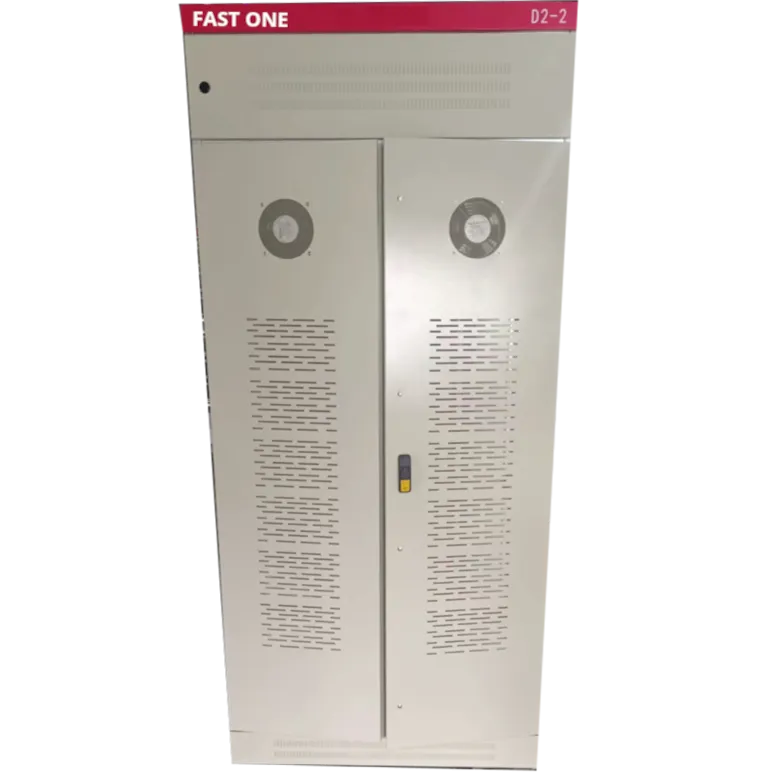

Fast ONE Complete AHF 200A-400V, Active Harmonic Filter & Static Var Generator, 140kvar/200 Amp @ 45 Deg C, 3 Phase 3 Wire, 400VAC /-20%, L:950 x W:950 x H:2200mm
For Automatic Switching of Power Factor Correction Capacitors according to changing site conditions. and for the filtering or control of Harmonic Distortion
Features
- Automatic Power Factor Correction up to Cos φ = 0.99
- Overtemperature Alarm
- Optional RS485 Comms
- IEC 654-1, UL Approved
- 3 Year Fastron Electronics Warranty
- Modular Construction for Rack or Wall Mount Installations
- Perfect for Residential Applications
- Stack multiple modules for larger Power Factor Correction Requirements
Specification
| Fastron Part Number | Fast ONE Complete AHF 200A-400V, |
| Function | Reactive Power Correction & Active Harmonic Filter |

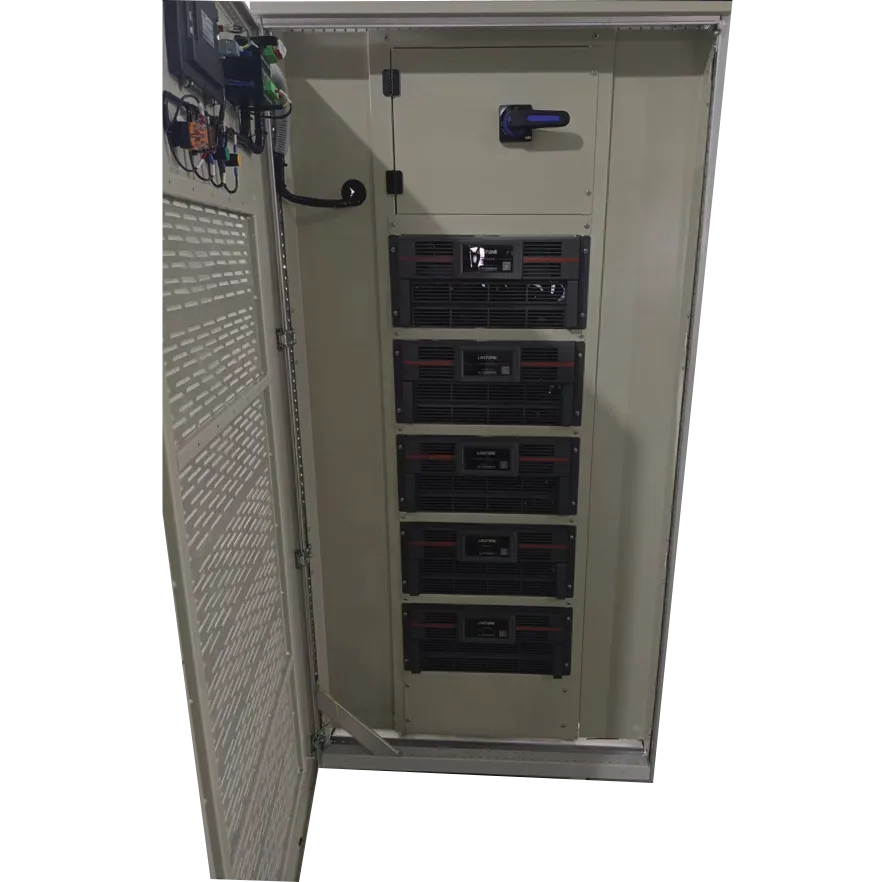

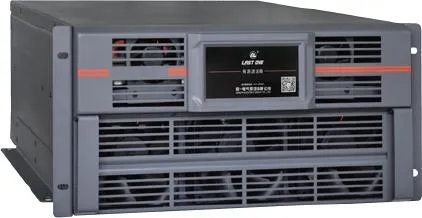

| Configuration | 2 x 100 Amp / 70kvar Modules |
| Current /Load Rating | 200 Amp per Phase (180 Amp @ 55 Deg C) /140 Kvar |
| Nominal Voltage (Un) | 400VAC Line to Line 50Hz /-20% |
| Switch Delay Time | Instant Correction/Inverter Based |
| Desired Harmonic | 0.99 IND - 0.99 CAP |
| LCD Display | IGBT Temp, Grid Current Grid THDi, Grid PF, Grid Imbalance |
| Current imbalance | < 5% |
| Comms | RS485 (Optional) |
| Termination Style | Screw |
| Dimensions | L:950 x W:950 x H:2200mm |
| Weight | 400kg |
| Certification |
EN 61000-6-4:2007 A1:2011 EN 61000-6-2:2005 EN 61000-3-2:2014 EN 61000-3-3:2013 A1:2019 |
| Factory Pack Qty | 1 |
| Material of housing | PC/ABS Unflammable, according to UL 94 V-0, & Stainless Steel Painted RAL 1013 |
| Enclosure protection | IP21 |
| Safety | According to EN 61 010-1, installation category III Pollution degree 2 |
| Operating Temperature | -20...55 °C |
