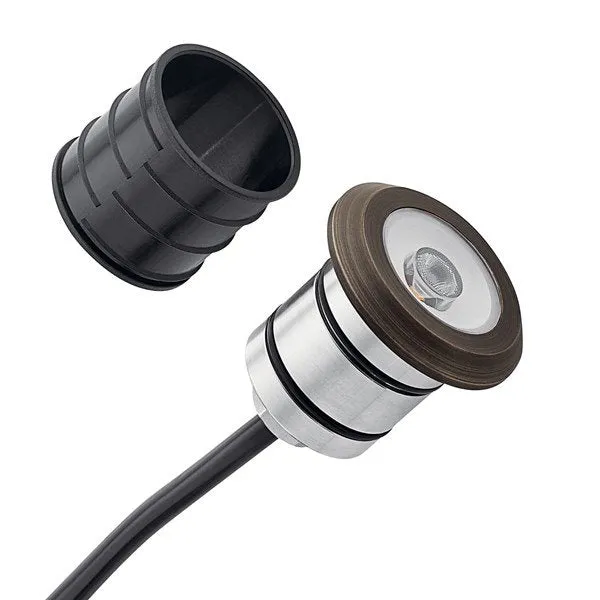

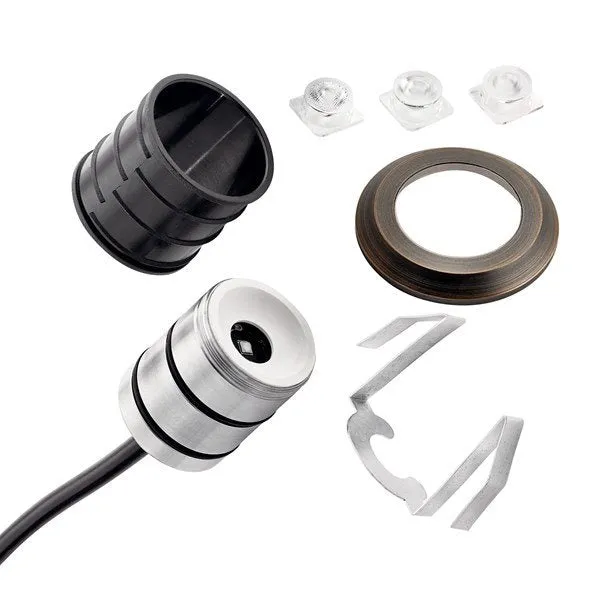

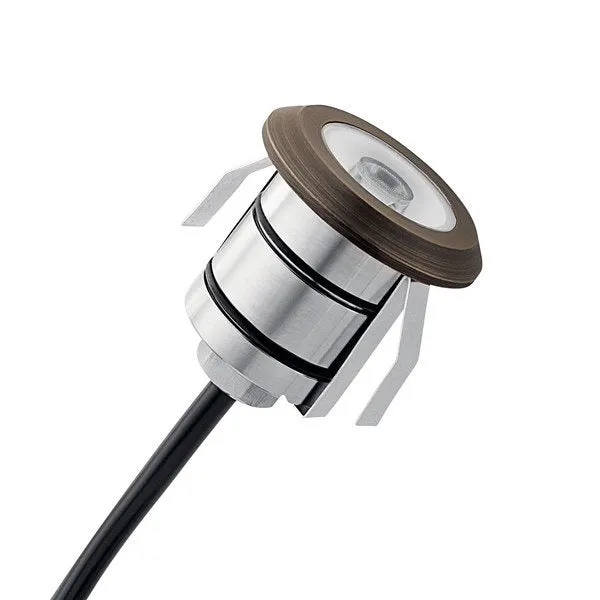

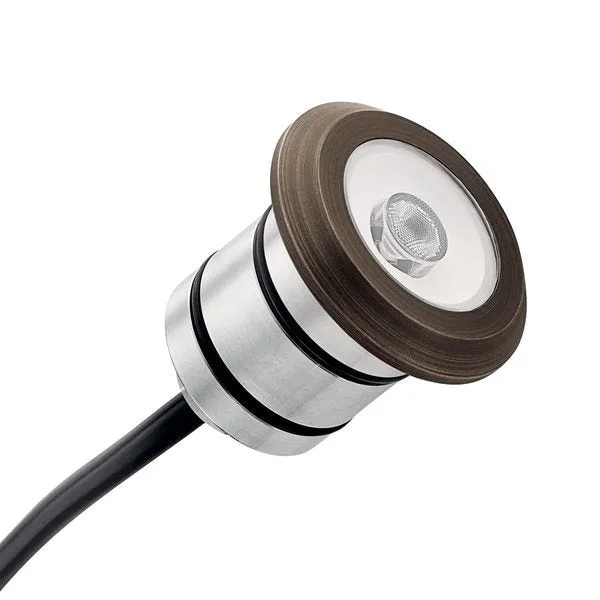

The 12V integrated LED All-Purpose Recessed fixture provides the performance and reliability you need for your next project or installation. This fully sealed and encapsulated fixture has 100 lumen output with a 3000K CCT, and comes in a Centennial Brass (CBR) finish. The three field changeable beam optics are included with each fixture: 20-, 40- (factory installed), and 75-degrees allow you to put light where you want it. A removeable spring clip and compression sleeve adapt to a wide variety of applications for seamless installation. IP68 rated against dust and water ingression. Additional features include a 6000kV surge protection built-in to guard against power irregularities and a 9-15-volt operating range.
Certifications/Qualifications:
- Prop65: Yes
Dimensions:
- Height: 2.25"
- Width: 2.25"
Electrical:
- Operating Voltage Range: 9-15 VAC
- Voltage: 12V
Housing:
- Primary Material: Stainless Steel
- Finish: Centennial Brass
Light Source:
- Delivered Lumens: 224
- Expected Life Span (Hours): 50,000
- Lamp Included: Integrated
- Light Source: LED
- Max or Nominal Watt: 1.5W
- # of Bulbs/LED Modules: 1
- Max Wattage/Range: 1.5W
- Volt-Amperes (VA): 3.50
Mounting/Installation:
- Lead Wire Length: 72"
- Location Rating: Wet
Photometrics:
- Color Rendering Index: 80
- Delivered Efficacy (Lumens/Watt): 50
- Kelvin Temperature: 3000K
