Product Details
＋

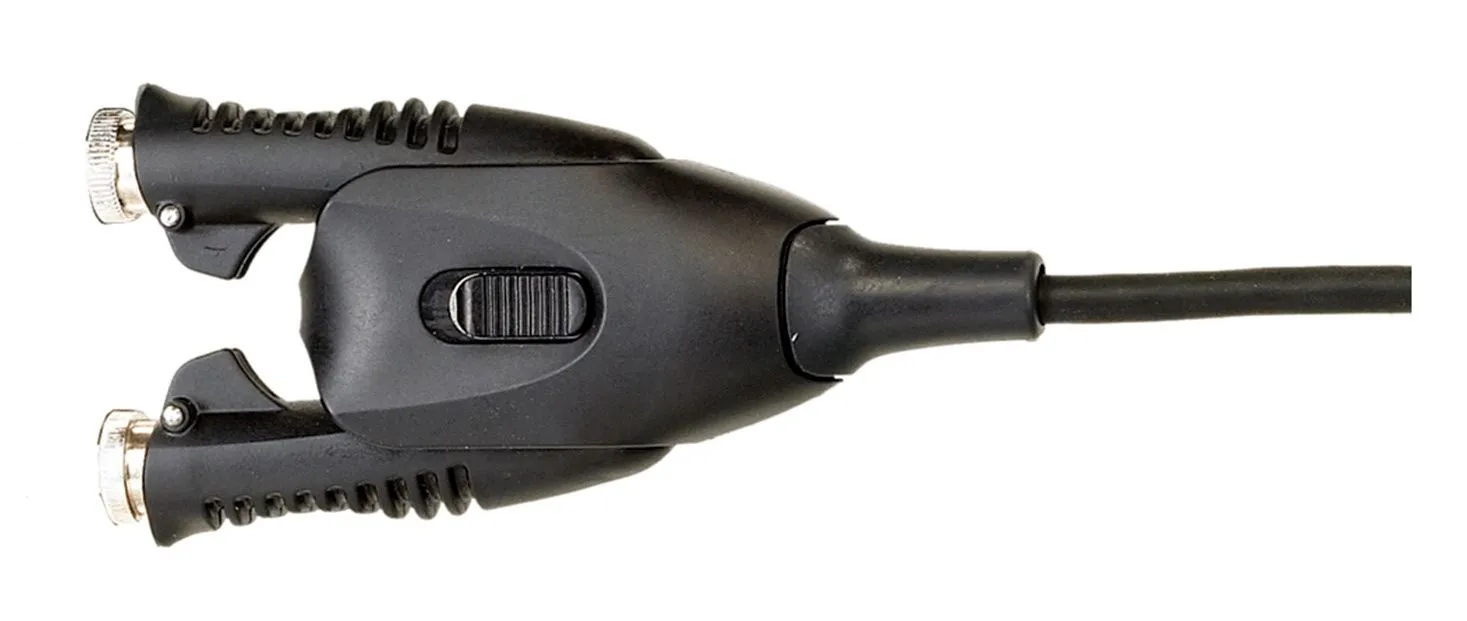

Precision tweezers handpiece for MFR-1100 and MFR-2200 Series Systems. This handpiece is ideal for SMD removal of 0201 resistors to 28 mm long SOIC.
Features and Benefits
- Ergonomic Handpiece
- Safe easy and quick change of cartridges thanks to removal pad provided
- Handpiece Cable Length: 122cm/48"
Specifications
- Input Line Voltage: 100 - 240 VAC, grounded circuit, 50/60 Hz
- Rated Power Consumption: 70 W max.
- Output Power: Variable, 60 W max.*
- Output Frequency: 450 KHz
- Heating Method: Induction, smartHeatR
- Connections: Single Port
- Power Supply Dim. W x D x H: 90 x 200 x 152.5 mm (3.5" x 7.9" x 6")
- Power Supply Weight: 2.3 kg (5.05 lb.)
- Certification / Marking: cTUVus, CE
- Tip-to- Ground Potential: < 2 mV
- Tip-to-Ground Resistance: < 2 Ohm
- Ground Detection: Permanent
- Surface Resistivity: 105 - 109 Ohm
- Idle Temperature Stability: 1.1°C ( 2°F) in still air
- Tip Temperature Accuracy: Meets or exceeds IPC J-STD-001 Standard
- Power Cord Length: 183 cm, 18/3 SJT
- Warranty: 1 year
- Ambient Operating Temp: 10 - 40°C (50 - 104°F)
- Max. Enclosure Temp: 55 °C (131°F)
