Product Details
＋

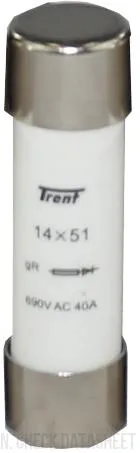

Trent NBR-CH14/UQ/12A/690V, gR Semiconductor Fuse, 12 Amp, 51x14mm 690V Semiconductor I²t Fuse Cartridge Style 51 x 14mm
Features
- Cylindrical Standard Fuses Sizes
- Wide Range of I²t
- Ratings up to 125 Amp
- Quick Release with fuse holder
- DIN Rail Mount with fuse holder
- Compatible with all 58 x 21mm fuse holders
- IEC Standard 60269.1 AND 4
- 690 V Voltage Rating complying with IEC 33
Applications
- Solid State Relay Switchboards
- Bridge rectifier Fusing
- Protection of High Powered Semiconductors according to I²t
- Short Circuit Protection
- DC or AC Motor I²t Protection
- Battery Fuse
Specification
| Trent Part Number | NBR-CH14/UQ/40A/690V |
| Fuse Type | I²t gR Class |
| Nominal Voltage | 690VAC @ 50Hz |
| I²t Rating (Pre-Arcing) | 50 A²/s |
| Nominal Current (RMS DC) | 12 Amp |
| Tested Breaking Capacity | 200kA @ 690VAC |
| Dimensions | 51 x 14mm |
| Fuse Holder | |
| Mounting Style | Requires fuse holder |
| Operating Temperature Range | -40°C / 125°C |
| Watt Loss | 8W |
| DC Breaking Capacity | 50kA |
| Unit Weight | 60g |
| Factory Pack Qty | 10 |
Datasheet
Compatible Fuse Holder
