Product Details
＋

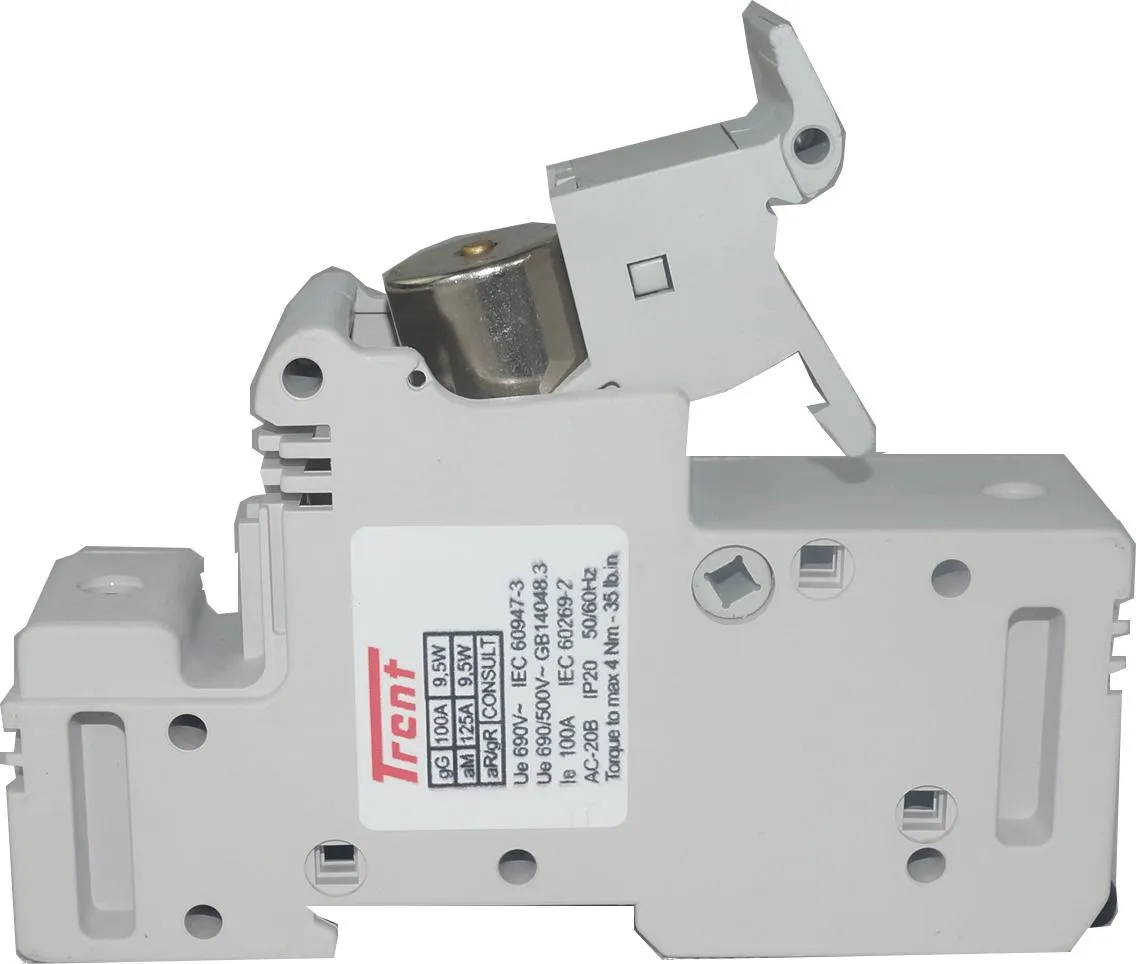

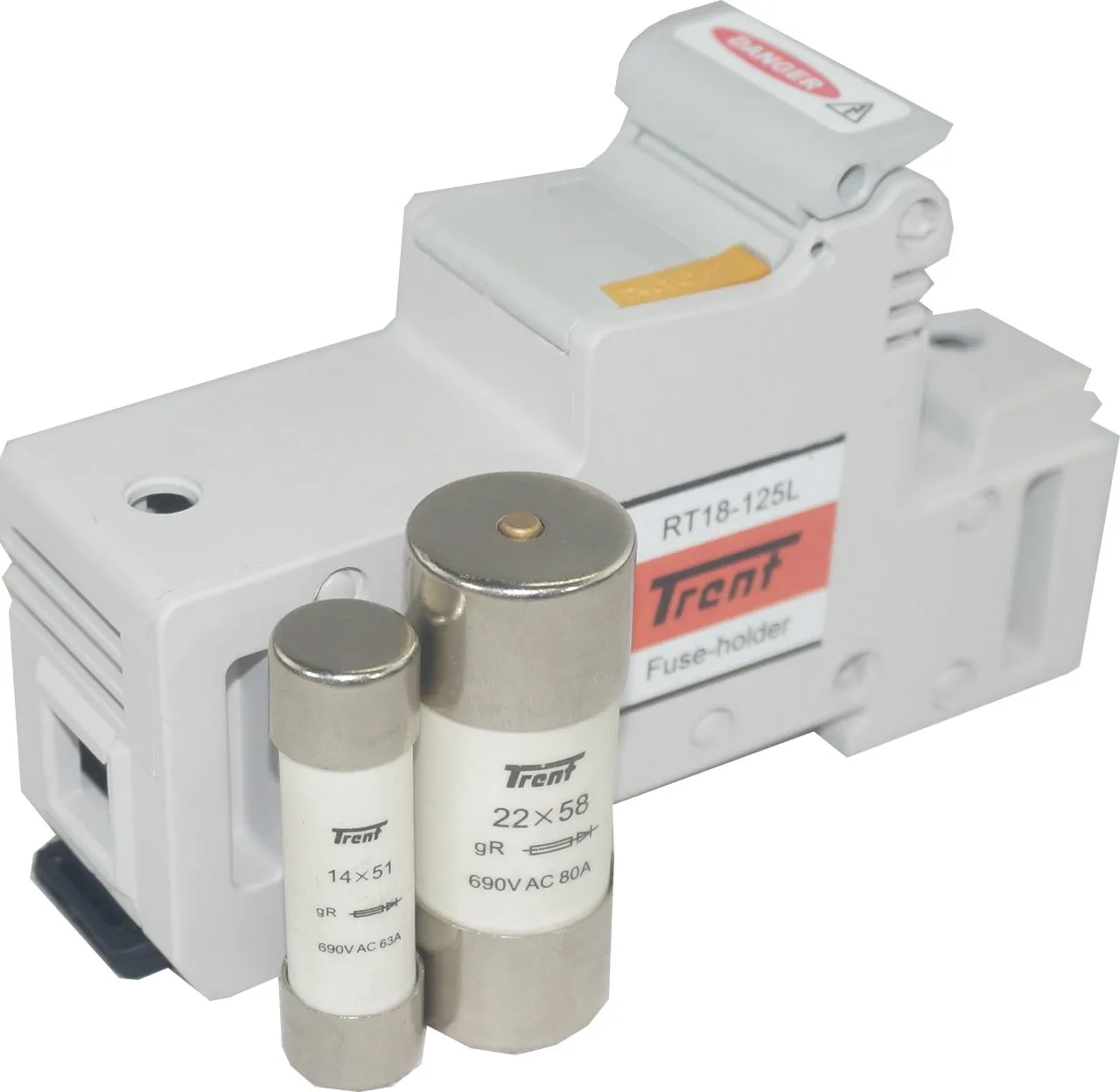

Trent NBR-CH14/UQ/6A/690V RT18-63L Series 6 Amp 690V Semiconductor I²t gR Fuse & Din Rail Fuse Holder Cartridge Style 51 x 14mm
Features
- Cylindrical Standard Fuses Sizes
- Wide Range of I²t
- Ratings up to 63 Amp
- Quick Release with fuse holder
- DIN Rail Mount with fuse holder
- Compatible with all 51 x 14mm fuse holders
- IEC Standard 60269.1 AND 4
- 690 V Voltage Rating complying with IEC 33
Applications
- Solid State Relay Switchboards
- Bridge rectifier Fusing
- Protection of High Powered Semiconductors according to I²t
- Short Circuit Protection
- DC or AC Motor I²t Protection
- Battery Fuse
Specification
| Trent Part Number | NBR-CH14/UQ/6A/690V RT18-63L |
| Fuse Type | I²t gR Class |
| Nominal Voltage | 690VAC @ 50Hz |
| I²t Rating (Pre-Arcing) | 10 A²/s |
| Nominal Current (RMS DC) | 6 Amp |
| Tested Breaking Capacity | 200kA @ 690VAC |

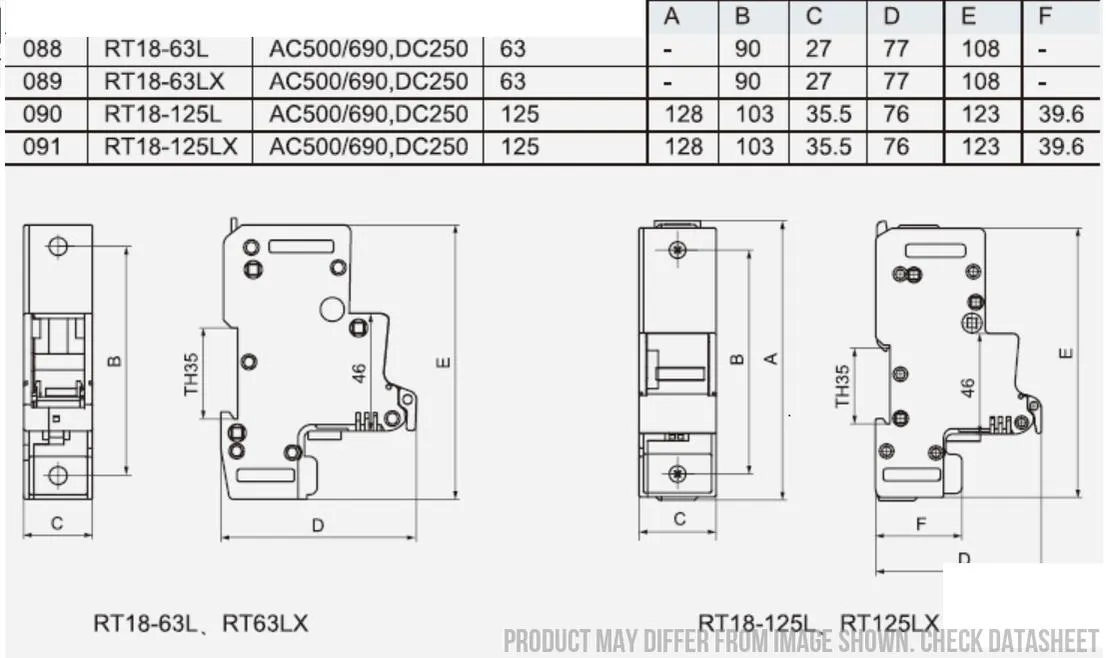

| Dimensions | 108mm x 77mm x 22mm |
| Fuse Holder | |
| Mounting Style | Din Rail Mount |
| Operating Temperature Range | -40°C / 125°C |
| Watt Loss | 13.8W |
| DC Breaking Capacity | 50kA |
| Unit Weight | 42g |
| Factory Pack Qty | 10 |
