Product Details
＋

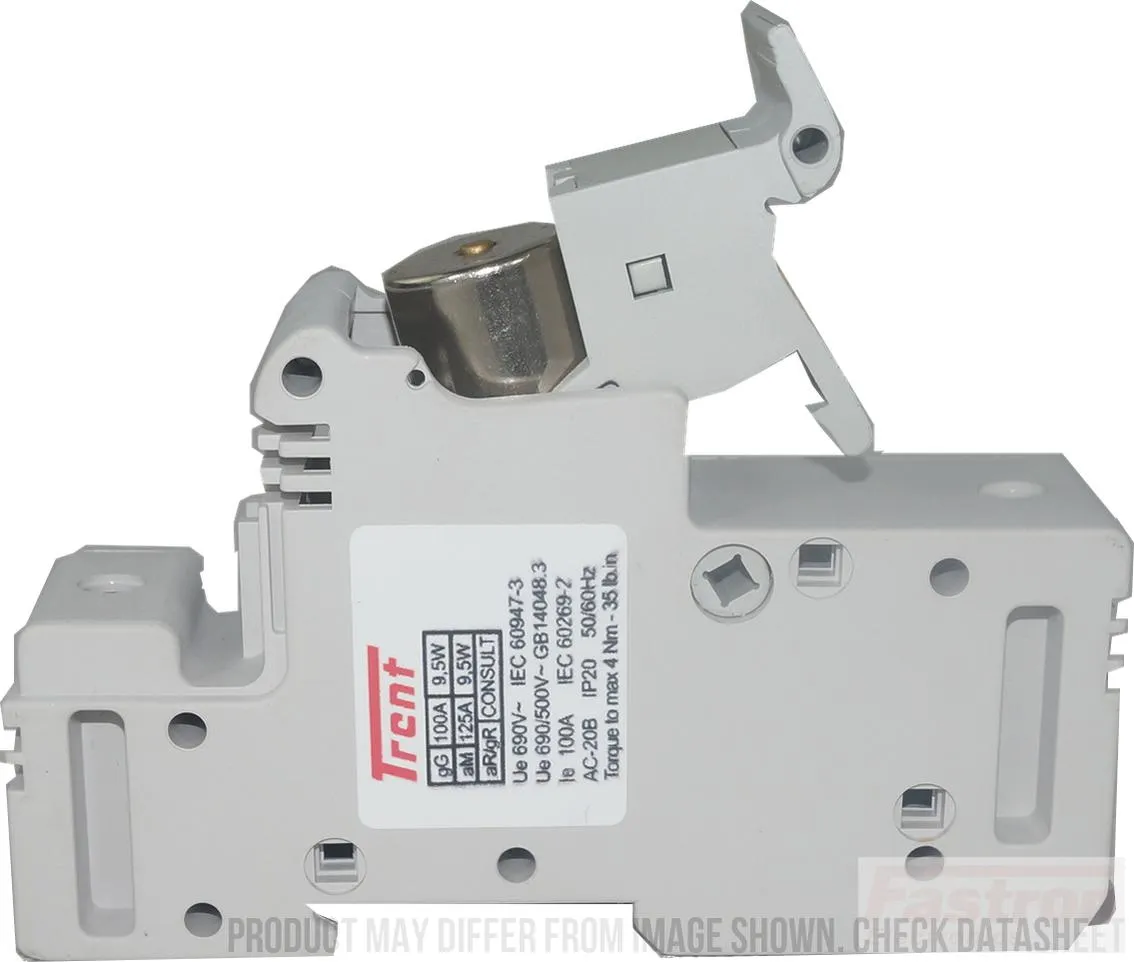

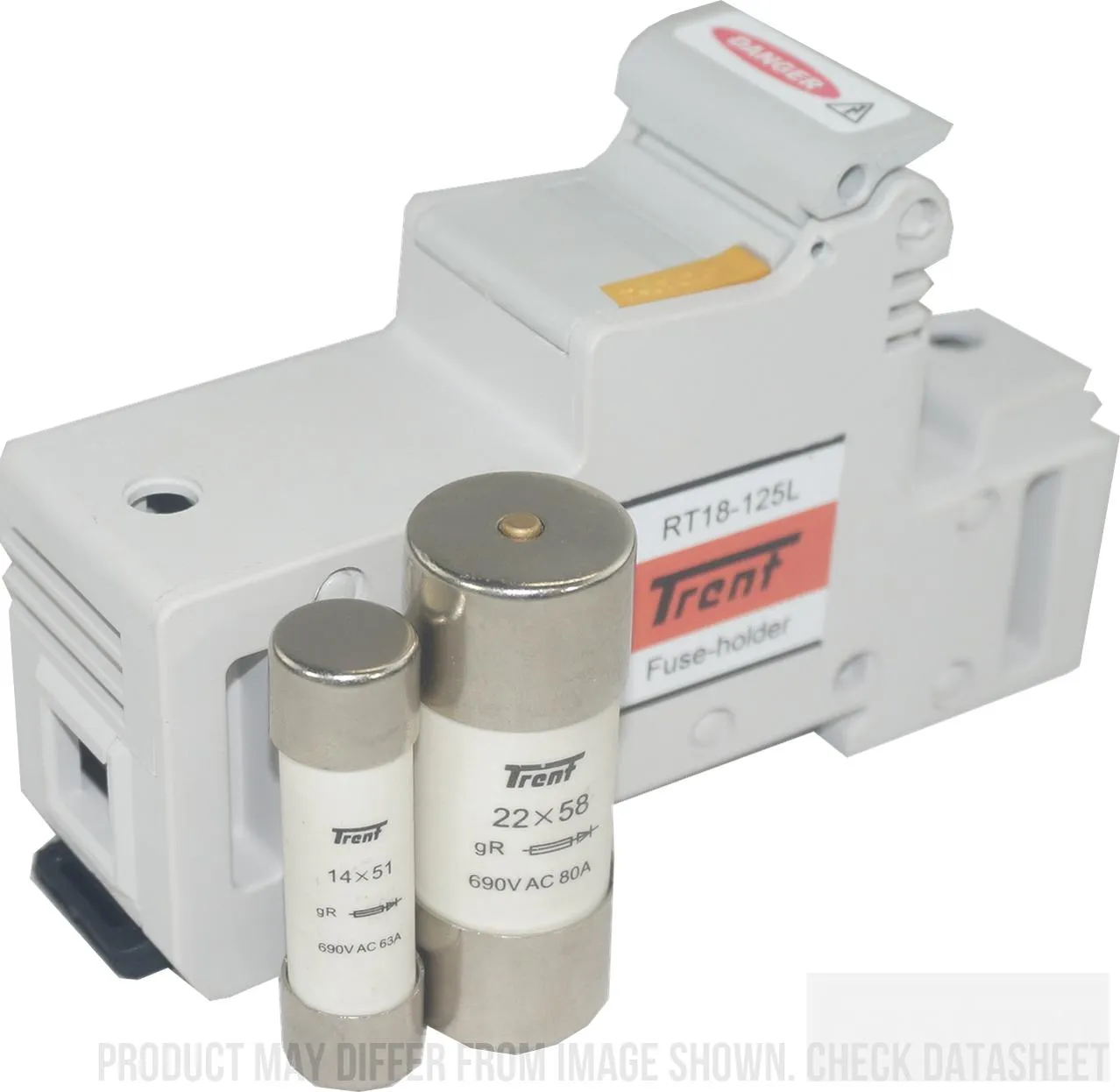

Trent NBR-FR22GR69V20T RT18-125L Series 20 Amp 690V Semiconductor I²t gR Fuse & DIn Rail Fuse Holder Cartridge Style
Features
- Cylindrical Standard Fuses Sizes
- Wide Range of I²t
- Ratings up to 20 Amp
- Quick Release with fuse holder
- DIN Rail Mount with fuse holder
- Compatible with all 58 x 21mm fuse holders
- IEC Standard 60269.1 AND 4
- 690 V Voltage Rating complying with IEC 33
Applications
- Solid State Relay Switchboards
- Bridge rectifier Fusing
- Protection of High Powered Semiconductors according to I²t
- Short Circuit Protection
- DC or AC Motor I²t Protection
- Battery Fuse
Specification
| Trent Part Number | NBR-FR22GR69V20T RT18-125L |
| Fuse Type | I²t gR Class |
| Nominal Voltage | 690VAC @ 50Hz |
| I²t Rating (Pre-Arcing) | 260 A²/s |
| Nominal Current (RMS DC) | 20 Amp |
| Tested Breaking Capacity | 200kA @ 690VAC |

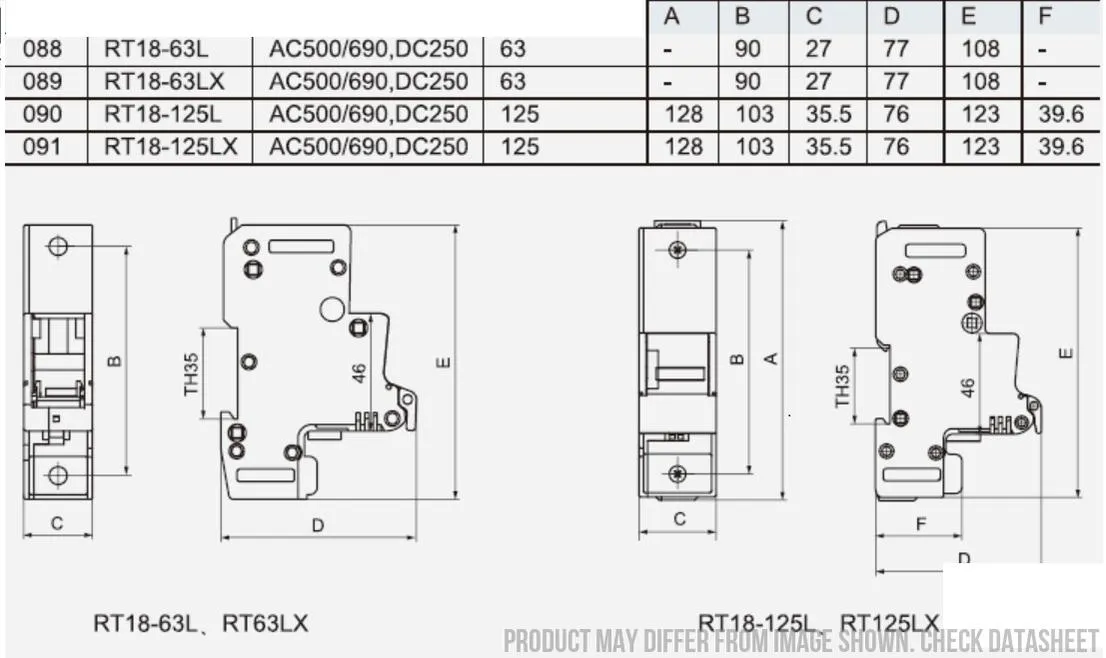

| Dimensions | 123 x 76 x 37.5mm |
| Fuse Holder | |
| Mounting Style | Din Rail Mount |
| Operating Temperature Range | -40°C / 125°C |
| Watt Loss | 22.8W |
| DC Breaking Capacity | 50kA |
| Unit Weight | 60g |
| Factory Pack Qty | 10 |
