Product Details
＋

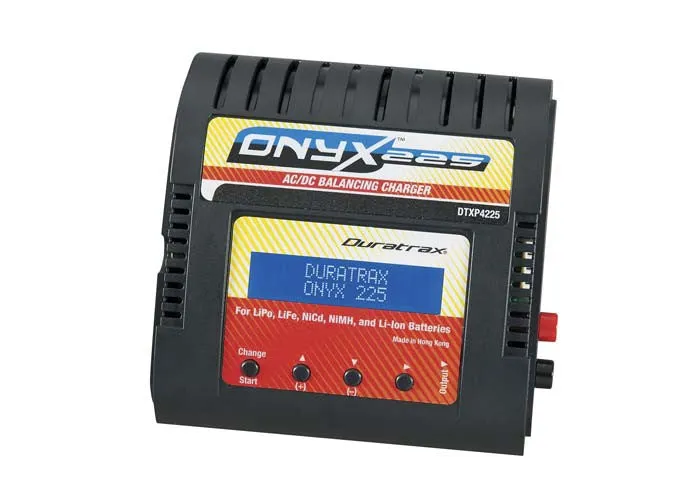

This is the AC/DC Powered Duratrax Onyx 225 AC/DC Balancing Charger with LCD.
**Additional Technical Info Will Be Added When It Becomes Available.**
Features:- Charges and balances 1-6 cell LiPo/ LiFe batteries
- Charges 1-15 cell NiMH/NiCd batteries
- Adapters with Standard, Traxxas and New Star plugs
- Peak charging, adjustable peak sensitivity and trickle charging for NiMH/NiCd cells
- 5mV per cell balancing accuracy
- Stores up to ten charging routines with numerous programmable functions
- LCD screen
- 60W AC power supply
- Push button setup with video and audio cues
- Five year limited warranty beginning at date of purchase. Valid in the USA and Canada only.
- Duratrax Onyx 225 AC/DC Balancing Charger
- 4mm Banana to Star Plug Adapter
- 4mm Banana to Traxxas Adapter
- AC Input Cord
- DC Input Cord
- ElectriFly Balance Board with Adapter
- Ac Input: 110V AC 60Hz
- Dc Input: 11-15V DC
- Output Power: AC 60W, DC 60W
- Battery Types: NiCd/NiMH 1-15 cells, LiPo/LiFe 1-6 cells
- Fast Charge Current: 0.1-6.0A Linear
- Fast Charge Termination: Peak detection for NiCd/NiMH,
- CC/Cv for lithium types
- Fast Charge Safety Timer: 0 - 300 minutes
- Nicd/Nimh Peak Sensitivity: 3 - 20mV adjustable
- Nicd/Nimh Trickle Charge Current: Auto (1/20 fast charge setting)
- or manual adjust (0-250mA)
- Lithium Balancing Accuracy: 5mV per cell
- Lithium Balancing Socket: JST EH
- Lithium Max. Node Current: 300mA
- Displayed Info: Input and output voltages, peak voltage, charge
- current, charge capacity and time, individual cell balancing
- voltages
- Input Connections: Detachable AC lead with plug, jack for DC
- Output Connections: 4mm female banana jacks
- Balancing Accuracy: 5mV per cell
- Protective Devices: Solid state reverse polarity and current
- overload
- Cooling System: Fan
- Dimensions: 6.3 x 5.3 x 1.7" (160 x 134 x 43mm)
- Weight: 11.1oz (314g without cords connected)
- Conformity Requirements: CE, RoHS
| Brand: | Duratrax |
| Brand Part Number: | DTXP4225 |
| Our Part Number: | h7174 |
