Product Details
＋

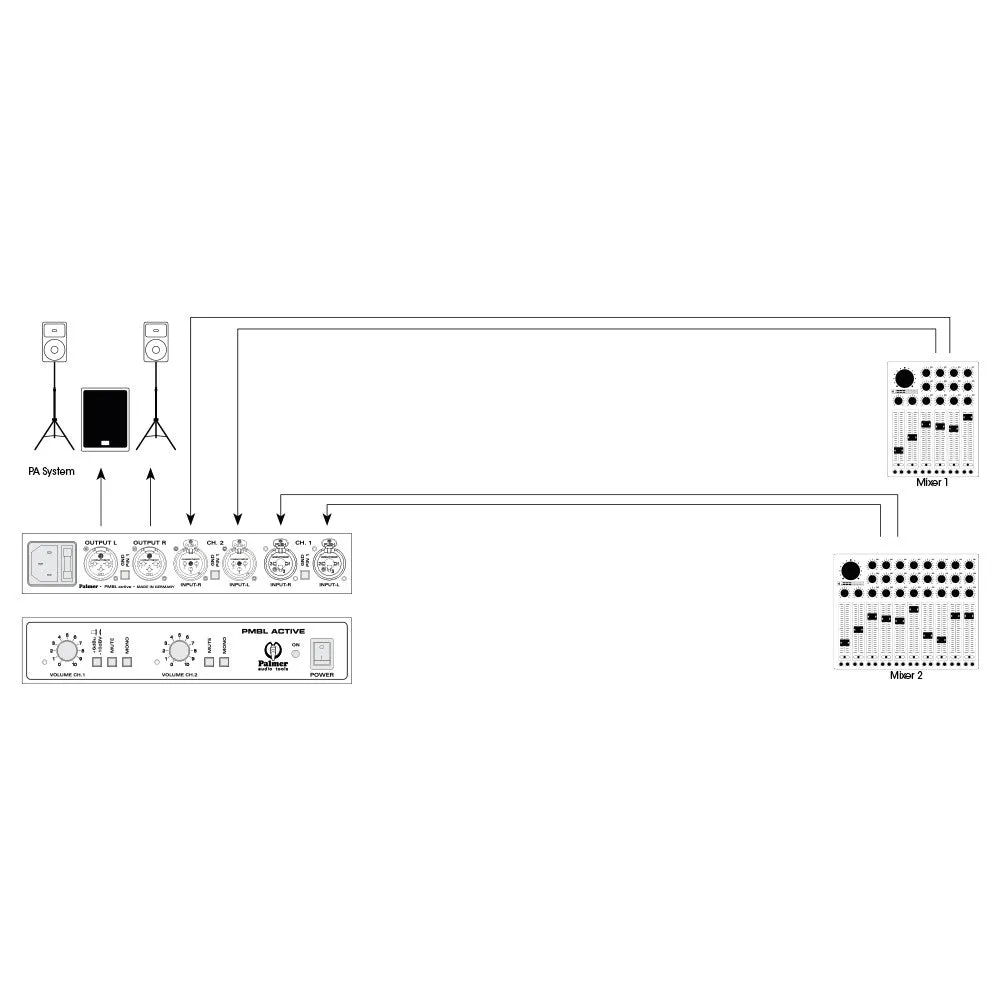

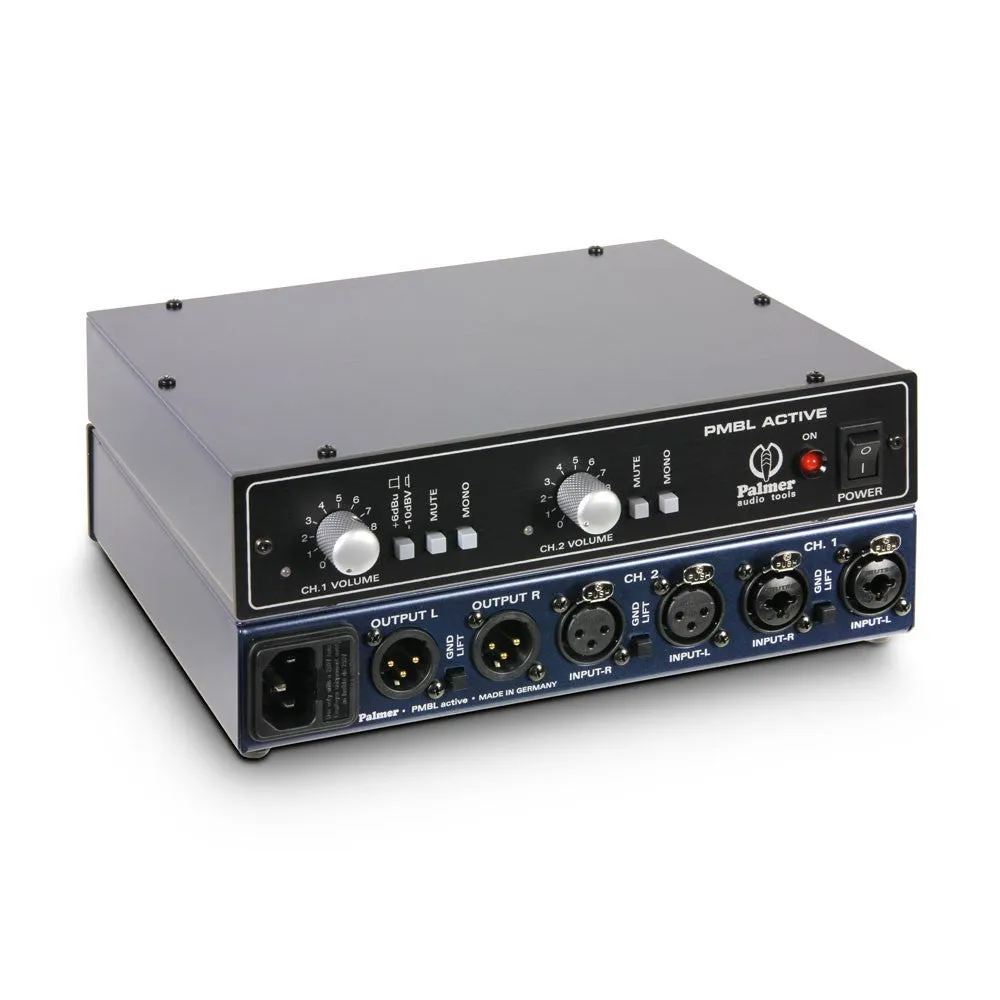

The PMBL-ACTIVE is a 2-channel stereo line level merge box that can be used to merge two stereo line signals into one stereo output. One classic application: routing two mixing desks to one PA system. The unit has enough amplification to boost even semi-professional levels accordingly. The input channels are galvanically isolated from one another. Each channel offers a mute switch and the ability to mix the stereo signal down to mono. The unit is housed in a 1 U/9.5" case and has a built-in power supply.
| Product type | Merger |
| Type | active |
| Inputs | 2 |
| Input connectors | 6.3 mm jack , XLR |
| Input impedance | 2 k Ohm(s) |
| Adjustable input | Yes |
| Outputs | 2 |
| Output connectors | XLR |
| Adjustable output | no |
| Output impedance | 600 Ohm(s) |
| Max. output level | 20 dBu (balanced) dBu |
| Indicators | Power |
| Controls | 6 dBu / -10 dBV switchable , ground lift , mono/stereo , mute , Power |
| Operating voltage | integrated (115 / 230 V) |
| Power consumption | 2.5 W |
| Width | 222 mm |
| Depth | 160 mm |
| Height | 44 mm |
| Cabinet material | sheet steel/aluminium |
| Cabinet surface | powder coated/anodized |
| Weight | 1,51 kg |
