Features

Made from high-purity recrystallized silicon carbide. (Crystar™) which combines physical and thermal strength with stable electrical properties
Designed to reach ignition temperature(s) within 17 seconds
Have 18-gauge nickel chrome lead wires embedded and metalized in place for maximum holding strength and electrical conductivity
Manufactured with lead wires enclosed in a special high-temperature fiberglass insulation providing electrical protection
Operate at 120V AC. Some modules are rated for 208/240V input, however, the voltage to the ignitor is stepped down to 120V AC

Specifications:

Manufacturer: Robertshaw
Manufacturer Part Number: 41-409

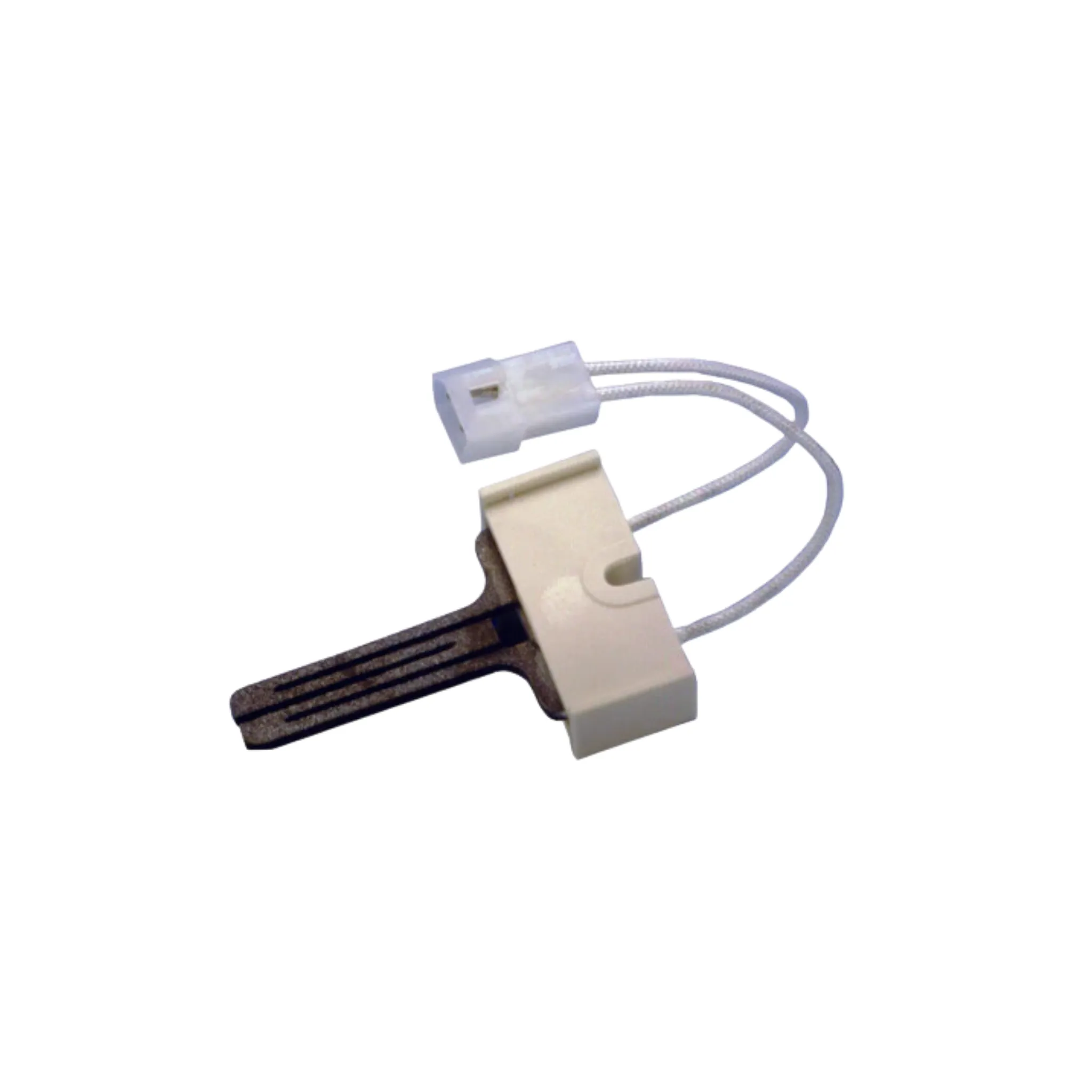

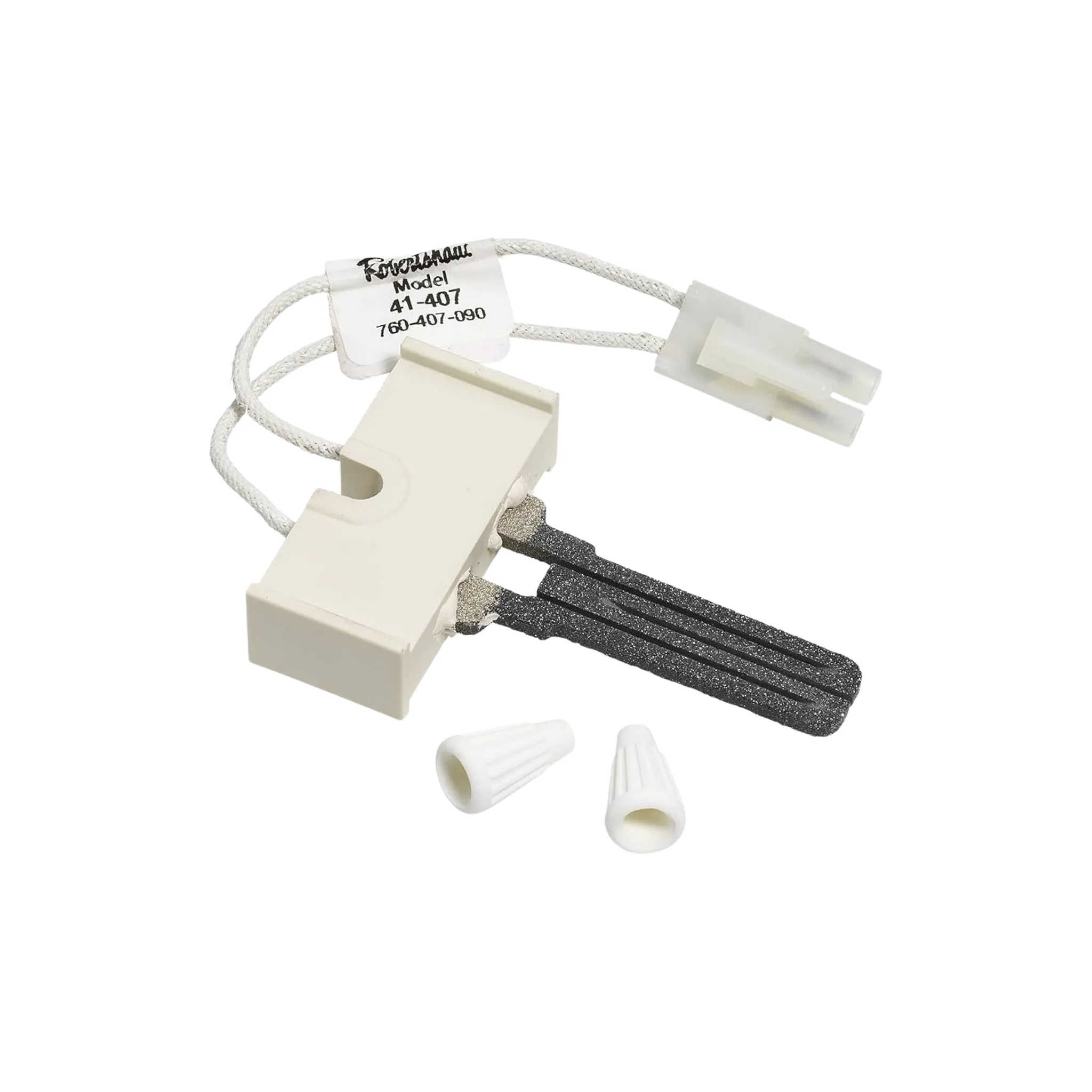

Product Type: Hot Surface Furnace Ignitor
Dimensions: 6.35" x 3.1" x 3.05"
Weight: 2.0 lb.
