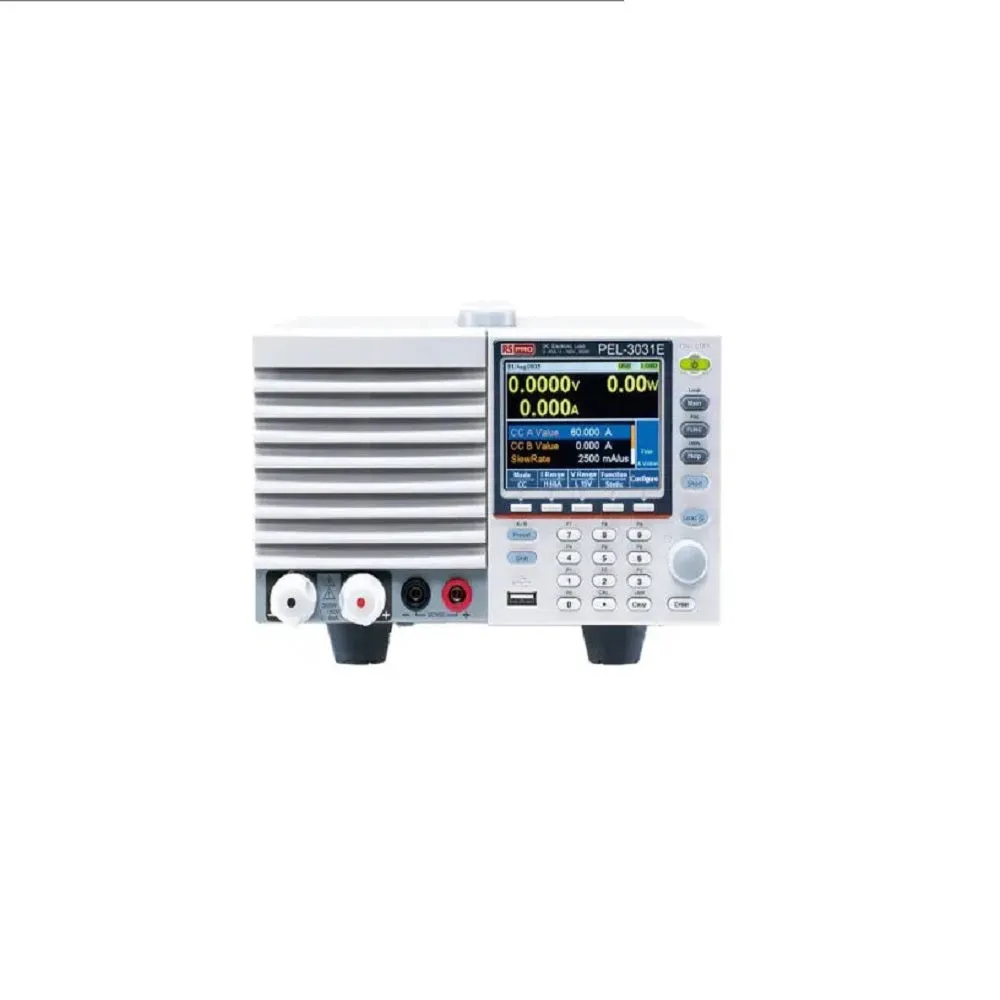

RS Pro 300W 1V-150V 60A Programmable Single Output DC Electronic Load 122-5545 PEL-3031E
RS Pro PEL-3031E is a programmable single-channel electronic load providing 300 W (1 V ~ 150 V / 60 A) current sink capabilities. It has seven operating modes, selected on the basis of product test requirements. Different test conditions are met by the Static function (to sink a constant current), the Dynamic function (to periodically switch between two sink conditions) and the Sequence function (to provide tests for more than two sink conditions). The Sequence function can be divided into Normal Sequence and Fast Sequence. Setting parameters for multiple steps can simulate consecutive current changes of real load conditions. A special feature of the RS Pro PEL-3031E is its Soft Start function which enables determination of the rise time of current sink, to decide the required time to reach a set current, resistance or power value. Test adaptability is enhanced by the Timer function (Count Time and Cut Off Time).
Features:
- CC, CV, CR, CP, CC CV, CR CV, CP CV operating modes
- Static function/ Dynamic mode (periodically switch between two sink conditions)
- Programmable Normal Sequence/ Fast Sequence function (fastest 25 üs/step)
- Soft Start function allows operator to determine the rise time of current sink
- UVP function for battery discharge tests
- Timer function for Cut Off Time & Count Time
- Analog control terminals enable control from external voltage, external resistance and switch
- Supports peripheral devices and trigger function (TRIG OUT/TRIG IN)
- Remote Sense function compensates voltage drop from resistance of test leads
- OCP, OVP, OPP, OTP, RVP, UVP
Applications:
- Electronic components
- Batteries
- Chargers/portable chargers
- Adapters
- Power supply equipment
- Power products
