Product Details
＋

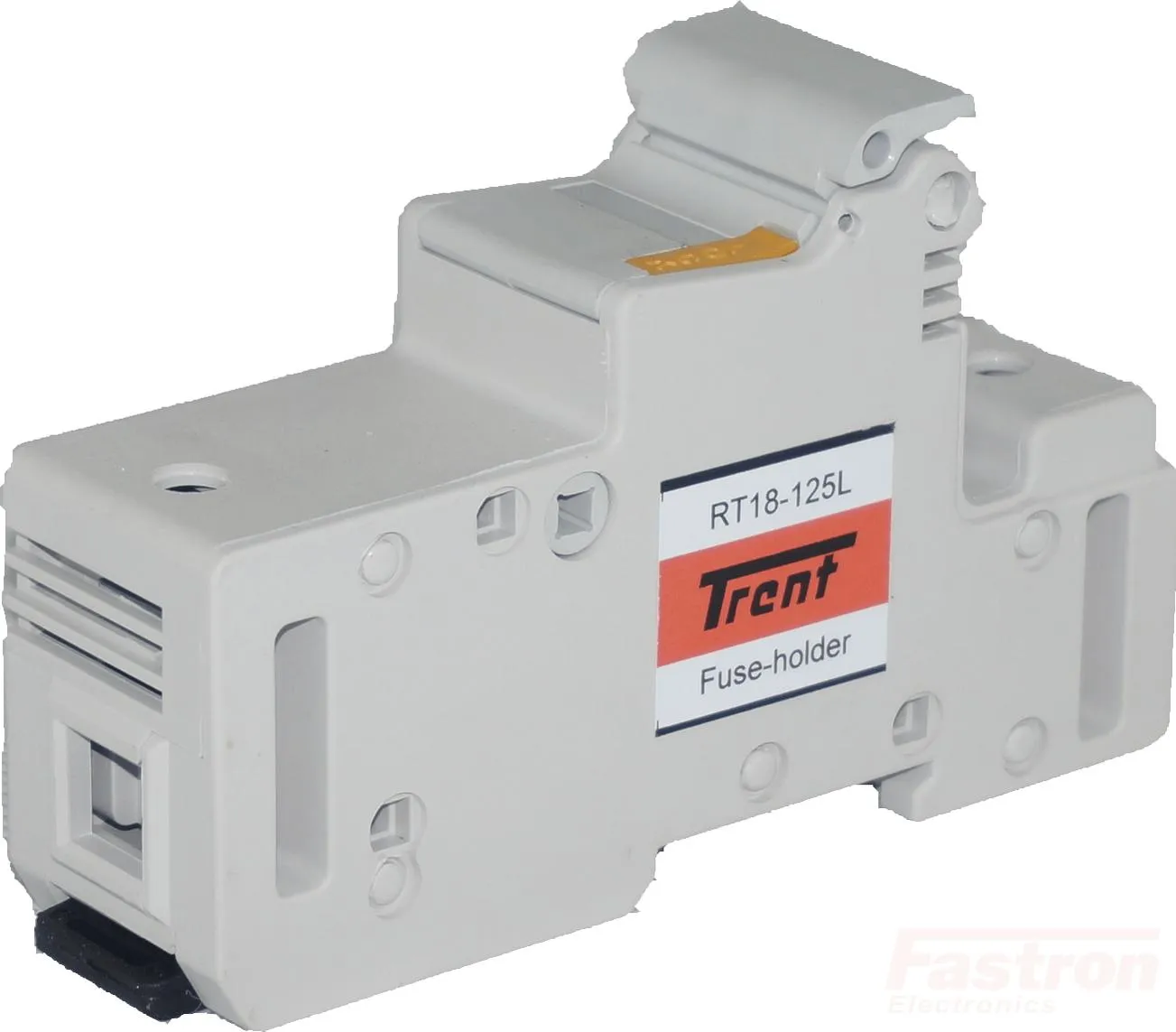

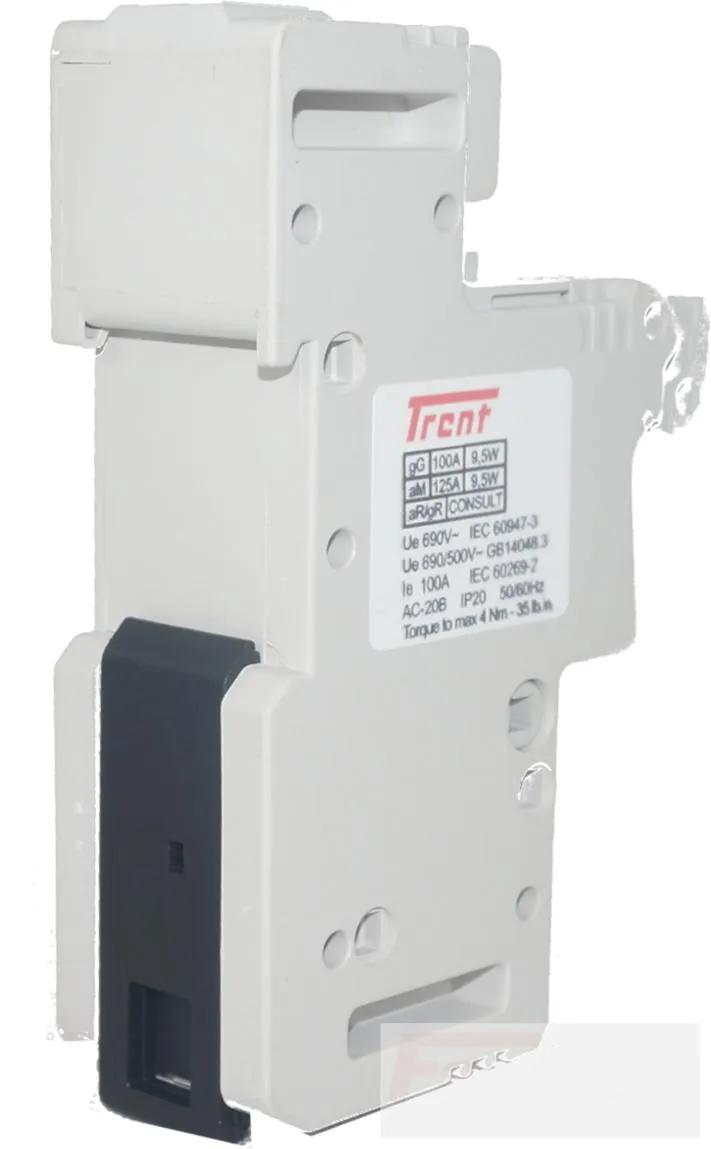

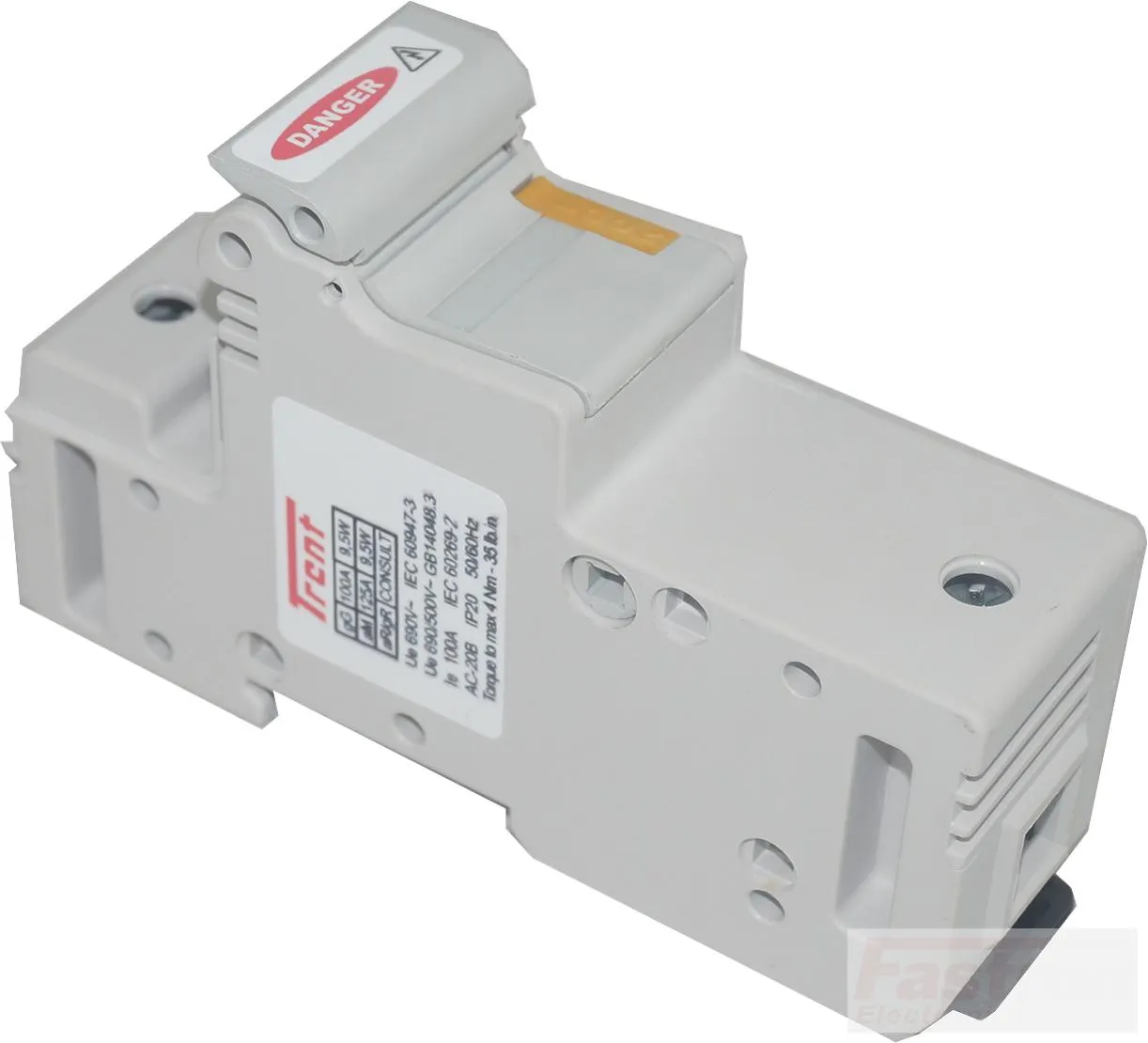

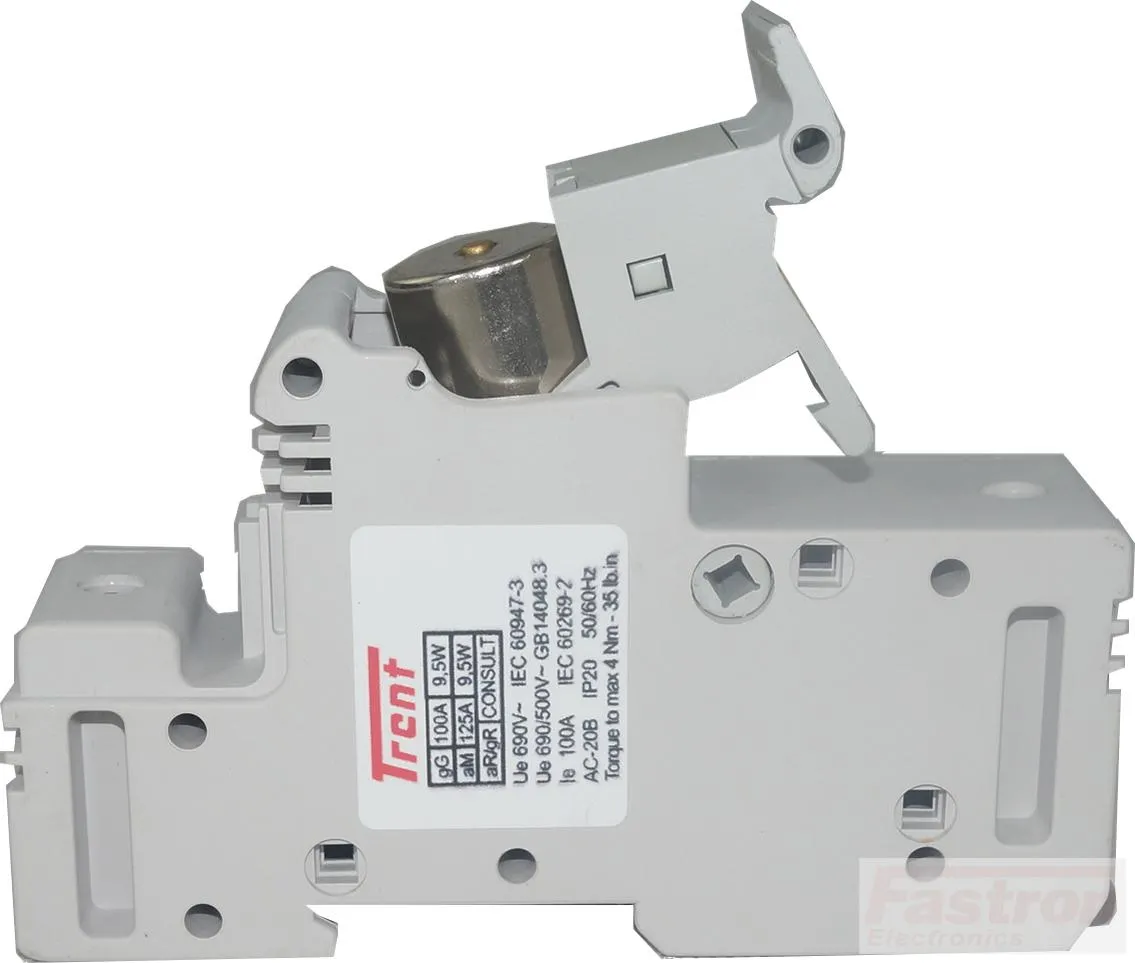

Trent RT18-63L Series 690V Semiconductor I²t Fuse Holder, Fuse Ratings up to 63 Amp
Features
- Cylindrical Standard Fuses Sizes
- Finger Safe
- IP 20 Protection
- Optional Fuse Indicator
- DIN Rail Mount
- Modular
- Lockable
- IEC Standard 60269.2 AND 3
Applications
- Solid State Relay Switchboards
- Bridge rectifier Fusing
- Protection of High Powered Semiconductors according to I²t
- Short Circuit Protection
- DC or AC Motor I²t Protection
- Battery Fuse
Specification
| Trent Part Number | RT18-63L |
| Fuse Holder Type | IEC Fuse Holder |
| Nominal Voltage | 690VAC @ 50Hz |
| I²t Rating (Pre-Arcing) | N/A |
| Nominal Current (RMS DC) | 63 Amp (63 continuous) |
| Tested Breaking Capacity | 160kA @ 690VAC |

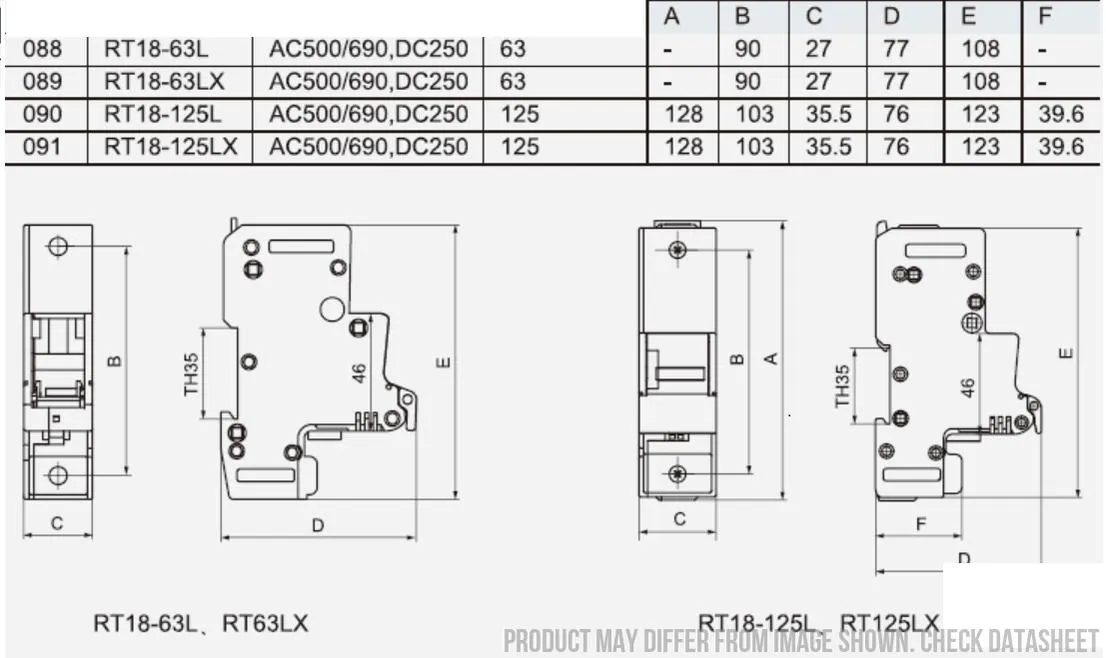

| Dimensions | 123 x 76 x 37.5mm |
| Fuse Compatibility | To suit 22 x 58mm cylindrical fuse |
| Mounting Style | Din Rail Mount |
| Operating Temperature Range | -40°C / 125°C |
| Watt Loss | N/A |
| DC Breaking Capacity | 50kA |
| Unit Weight | 70g |
| Factory Pack Qty | 10 |
Datasheet
Compatible Fuses
Equivalent to Mersen
