Description

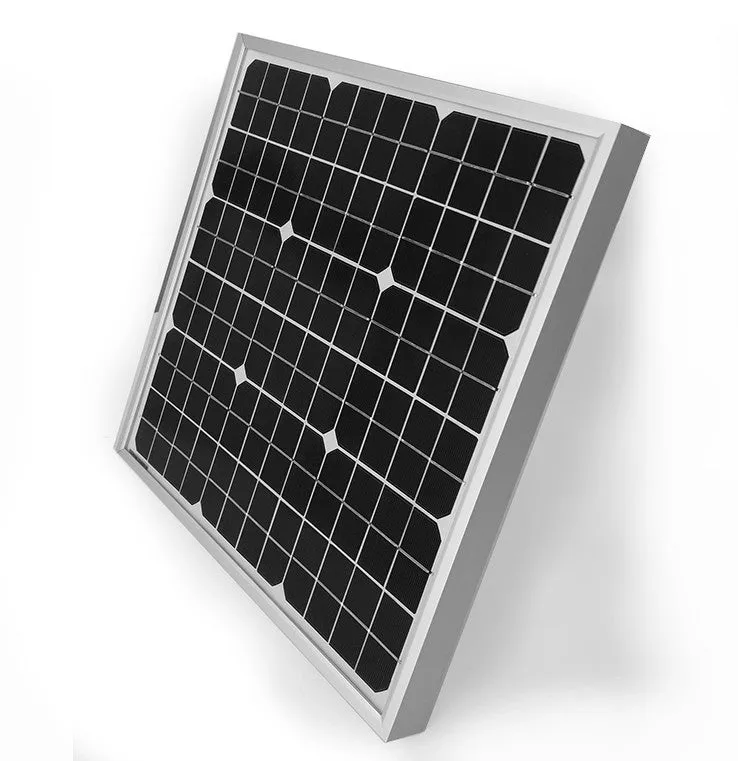

30W 12V Solar Panel

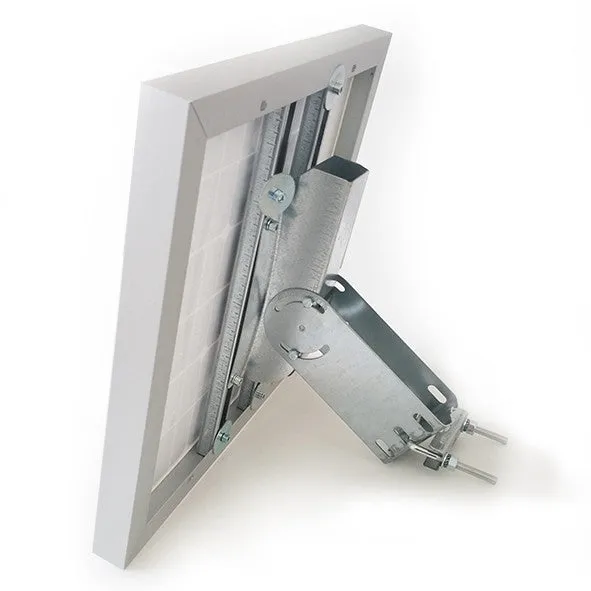

Supplied with robust  fixing bracket

photovoltaic module made with monocrystalline  silicon cells.
Highly transparent prismatic tempered glass and  Tedlar sheet protects the cells, which are encapsulated between two sheets of EVA (Ethylene Vinyl Acetate). A robust anodized aluminum frame 25mm makes the modules extremely resistant.
The production process ensures the cells maximum protection even under the most demanding working conditions and the most difficult environmental conditions.

Electrical Data

Maximum power (Pmax) 30Wp
short circuit current (Isc) 1.90 A
Open Circuit Voltage (Voc) 21.17V
MPP current (Imax) 0.66 A
MPP voltage (Vmax) 38 V
Isolation voltage 600 Volt
NOCT (800W / m2-20 ° C - AM 1,5) 47 ° C
PHYSICAL CHARACTERISTICS

Dimensions (mm) 798x 356 x 30
Weight  3.4 Kg bracket

Features

CONSTRUCTION FEATURES

Place of production form Italy
Number of cells 72
Front (Front) Tempered glass 4 mm
Rear (Rear) Tedlar multi-layer
encapsulation EVA
Anodized aluminum frame
Junction Box IP65-2 bypass diodes
