Product Details
+
Velowave Breeze T Torque Step Thru Electric Fat Tire Bike
-
Classes:
Class 3 (Ebikes can go up to 28mph with pedal assistance)
Max Speed:
28MPH by pedal, 20MPH by throttle
Range:
Up to 90 Milesx on PAS, 37 Milesx on Throttle (Range Per Charge is measured under the conditions that power is sufficient, with a 75kg load, at 86°F(30°C), 70% humidity, on a level road, in pedal assist mode with Eco assistance, and in pure electric riding mode by throttle. Actual results may vary based on differences in temperature, load, wind speed, road conditions and other factors.)
-
Frame:
6061 Alluminum Alloy with Internal Battery
Fork:
Hydraulic Suspension Fork with 100mm travel, with lockout
-
Rim Material:
Aluminum
Rim Size:
Aluminum 27.5" 13Gx36H Front & Rear
Front Wheel Spokes:
Black Stainless, 27.5" Front 13Gx261L/263L, Rear 12Gx222.5L
Tubes:
Butyl Rubber, Schrader Valve
Hubs:
Front Axles with quick release mechanism; disc hub with 6 bolts
Tire:
Kenda Tires
Tire Size:
Kenda 27.5"x2.2"
-
Battery:
Removable Internal Lithium-ion Battery 48V15AH (720Wh) with LG cells
Charger:
48V 2 Amp Charger, Approx. 8 Hour Charging
Motor:
500W (960W), 65Nm

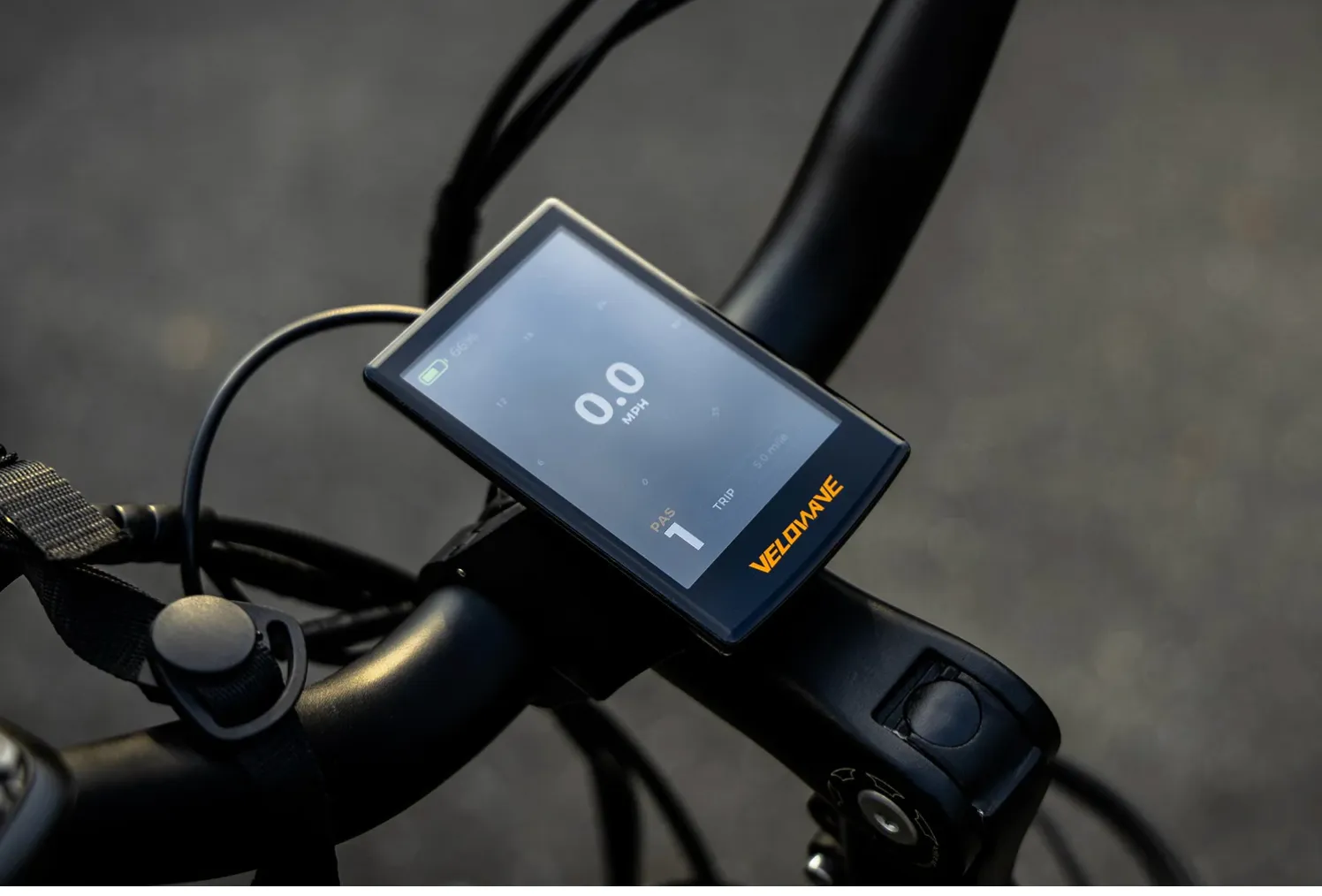

Display:
Large Screen Display with Backlight, Color screen
Pedal Assist:
5 Levels (1/2/3/4/Sport)
Sensor:
Torque Sensor
Throttle:
Throttle on demand - Throttle from a complete stop
Front Light:
Front 6-48V LED Light 90 LUX
Tail Light:
Rear Break Light, 12V 20 LUX
-
Shift Lever:
Shimano 7-Speed Rotary Shift Lever
Rear Derailleur:
SHIMANO TOURNEY 7-Speed
Crank & Chainring:
170MM W/48T
Freewheel:
14-28T, 7-Speed Freewheel
Pedal:
Alloy Platform Pedals
Chain:
KMC 116 Link Anti-rust Chain
-
Saddle:
Comfortable Wide Saddle
Seatpost:
Forged Alloy, Ø30.4x350mm
Seat Clamp:
Ø35mm Quick Release
Stem:
Bar bore: Ø31.8mm, Clamp I.D.: Ø28.6mm, HEIGHT: 40mm, RISE: 7°
Handlebar:
Aluminum Ø22.2mm, Width 700mm
Headset:
Sealed Bearing Headset
Grips:
Ergonomic Comfort
Brake:
Tektro Hydraulic Disc Brakes w/180mm discs
Brake rotor:
Tektro Hydraulic Disc Brakes w/180mm discs
Kickstand:
Alloy, Rear Mount
Fenders:
Aluminum 27.5"x60mm
Rear Rack:
Aluminum alloy, Max Load 55 LBS
-
Net Weight:
30KG/66LBS (including battery)
Gross Weight:
36KG/79LBS
Battery Weight:
3.797KG/8.37LBS
Weight limit:
300 lbs Payload Capacity
-

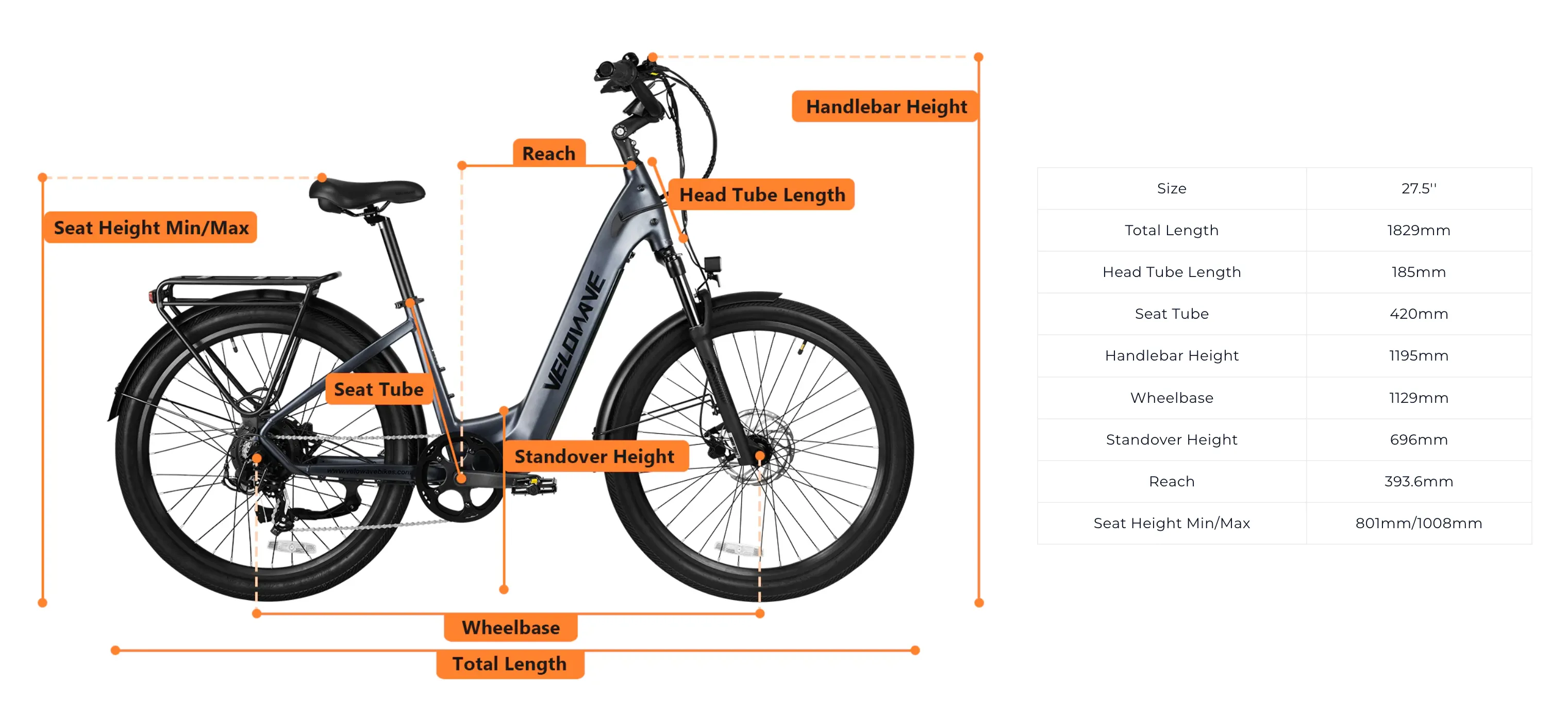

Product Size:
1835x720x1200mm
Packing Size:
1500x260x860MM - Warranty: 2 Years Manufacturer
